| Model NO. | S186GS | S186GD |
| Basic Parameters | ||
| Driver Signal | 12V | |
| Driver Voltage | 24V | |
| Movement | Single | Dual |
| Passing Speed | 35 Persons/Min | |
| Traffic | Unidirectional/Bidirectional | |
| Open & Close Time | 0.5-1sec | |
| Rotation Angle | 180° | |
| Material | 304 Stainless | |
| Channel Width | ≤780mm | |
| Swing Arm | 370mm/acrylic | |
| Card Reader | Support | |
| Counting People | Optional | |
| Illegal infiltration | Support | |
| Anti-pinch | Infrared/Mechanical | |
| Infrared | 4 Pairs | |
| Gate Control | Switch/Remote | |
| Interface | ||
| RS485 | RS485 electrical standard,communication distance:<1200 meters | |
| Input Port | Switch Signal(NO NC COM) | |
| Network Port | Optional | |
| General Specification | ||
| Power | 220V±10% 50Hz 110V±10% 60Hz(optional) | |
| Working Temperature | -30℃~60℃/10~95% | |

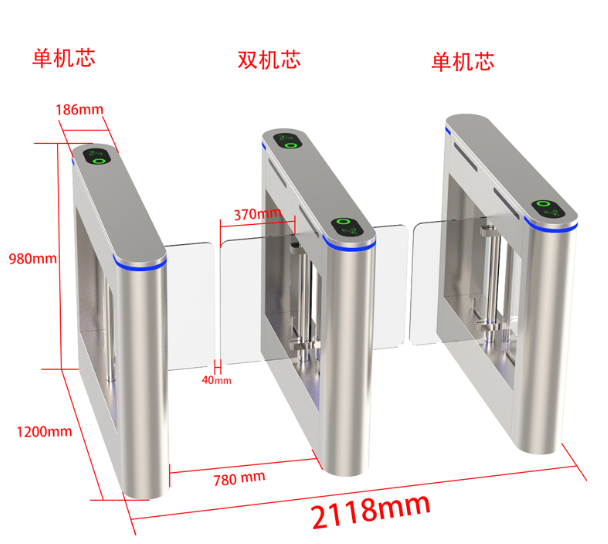

| Device Size | 1200*186*980mm | |
| Package Size | 126*46*116 | 126*65*116 |
| Package Weight | 175.5KGs | 247KGs |
