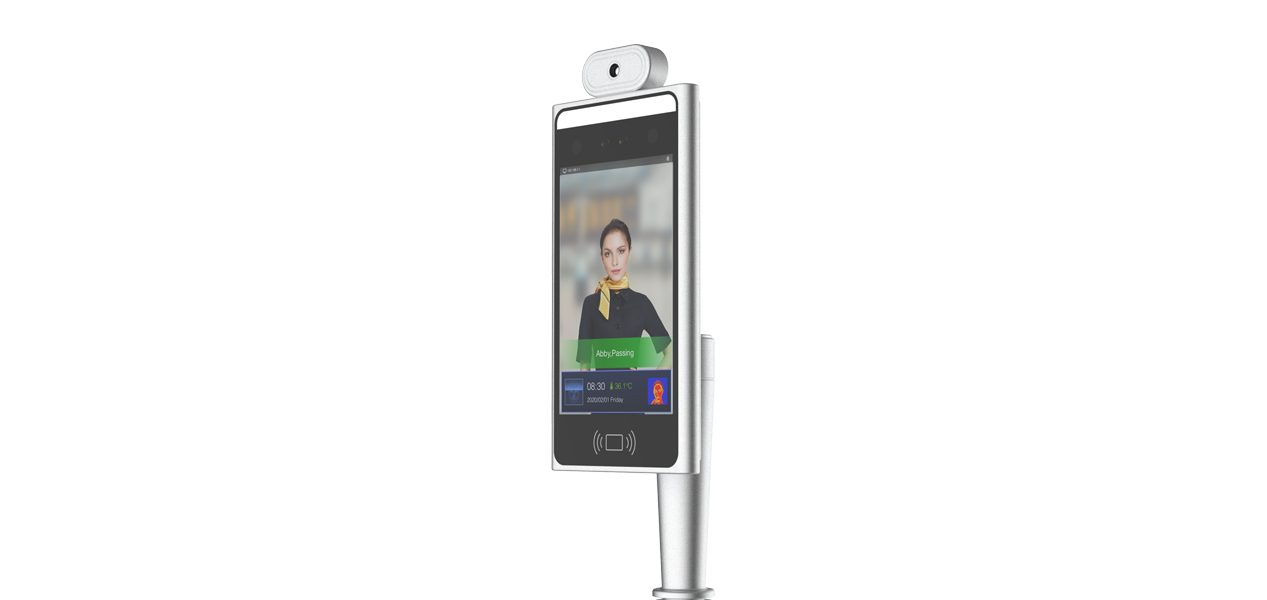

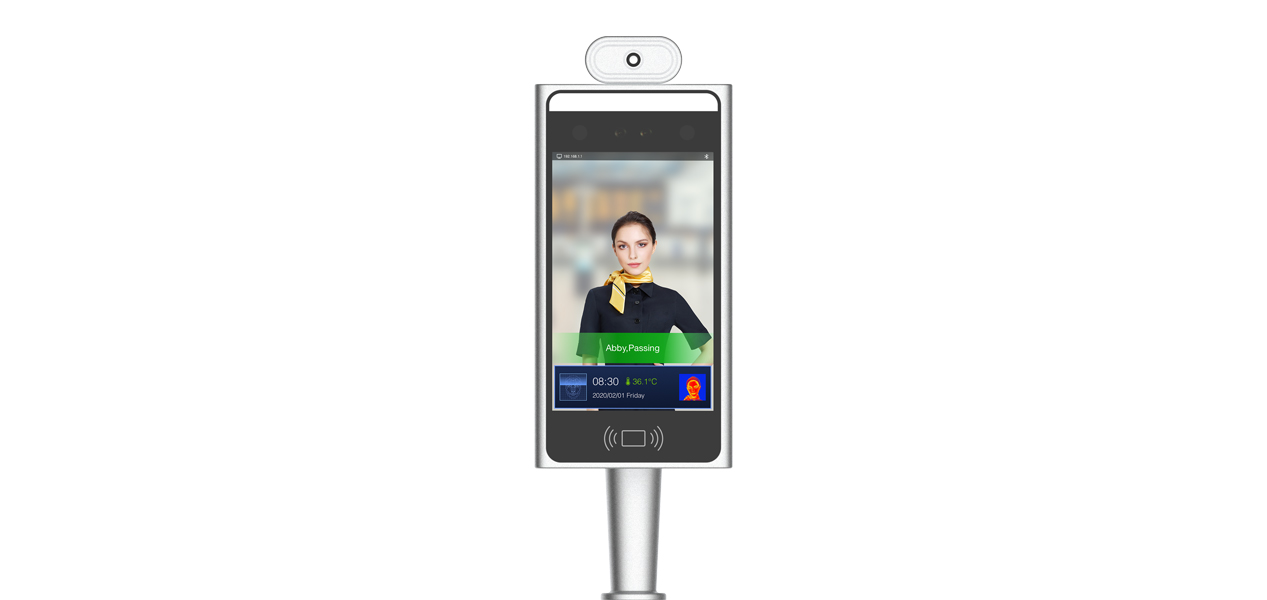

Model NO.S08T
System
Main ProcessorRV1109, Dual ARM Cortex-A7, NPU 1.2T
Operating SystemEmbedded LINUX
RAMDDR3 1GB
ROMEMMC 16GB
Screen
Dimensions8 inch IPS HD LCD screen
Resolution800*1280
Camera
Type2MP  camera
Sensor1/2.9"  GC2053
ResolutionNIR 1280*720@25fps
Lens4.5mm
Camera
TypeDaily camera
Sensor1/2.9" GC2093
ResolutionColor 1920*1080@25fps
Lens4.5mm
Body temperature detection
Temperature range35.7℃-42℃
Temperature measuring
distance
0.7-1.2m
Temperature measurement
accuracy
± 0.3℃
Face recognition
Detection FunctionFace Dection, Face Comparison, Mask Detection, Living Body Detection, Face Comparison(With Mask)
Face Recognition
Distance
0.5-2m
Face Database
Capacity
Max support 30,000 faces
Face PostureVertical  61°, horizontal  36°
OcclusionOrdinary glasses and short fringe have no effect on recognition.
ExpressionUnder normal circumstances, slight expressions do not affect recognition.
Response SpeedAbout 200ms
Face ExposureSupport
Local StorageSupport storage of 50,000 records
Recognition AreaFull screen recognition
Upload MethodTCP, HTTP,  MQTT
Network Functions
Network ProtocolIPv4, TCP/IP, HTTP, MQTT, RTSP, SMTP, NTP
Interface ProtocolPrivate protocol
Security ModeAuthorized  password
Event LinkageVoice broadcast, Abnormal event upload to the platform, Alarm Output
System UpgradeSupport remote upgrade
Accessories
Supplementary LightIR light, LED white light
Identification Module/
Audio OutBuilt in Speaker support voice broadcast after successful recognition
Wi-Fi/
Bluetooth/
Card ReaderBulit in IC card reader, Support Mifare1 IC card
4G(Optinal)/
Alarm Indicator LightAbnormal red light, Normal green light
Interface
Network InterfaceRJ45 10M/100M Network Adaptation
Alarm Input/
Alarm OutputSupport 1 channel
Relay OutputSupport
RS485Support
Wiegand InterfaceSupport Wiegand 26, 34 protocols
USB1*USB 2.0
TF Card Slot/
HDMI/
Reset KeySupport
Anti-disassembly
Switch
/
General
HousingAluminum alloy, Ultra-white tempered glass panel
Operating Temperature -10 ° C ~ 50 ° C
Operating Temperature 8 ° C ~ 33 ° C(Enable temperature measurement)
Working Humidity10% -90% Non-condensing
Storage Temperature -20 ° C ~ 50 ° C
Storage Humidity5% -95% Non-condensing
Protection Level/
Power SupplyDC12V, 2A
Power Dissipation
(maximum)
18 W

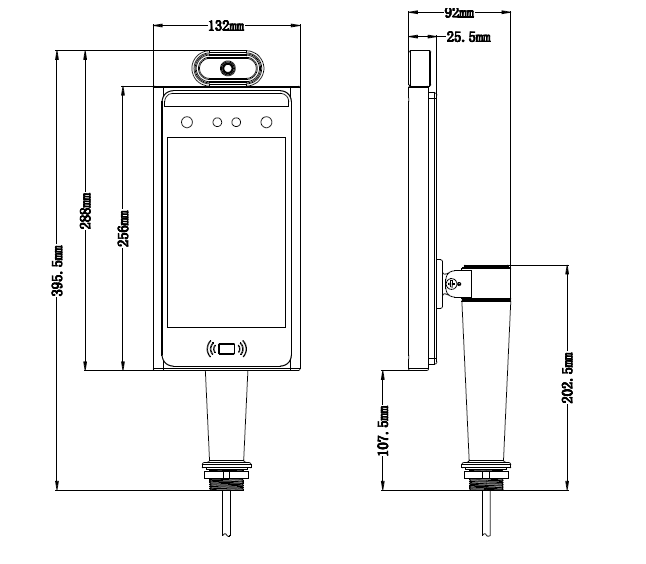

Dimensions (mm)Column Bracket Model:395.5(L)*132(W)*92(H), Wall Bracket Model:290.5x(L)*132(W)*31(H)
Bracket Size (mm)Column Bracket:202.5mm(Bracket fixing hole size D=35mm)
Installation MethodGate machine Installation/Column Installation/Wall Installation
