| Model NO. | S08 | |
| System | ||
| Main Processor | RV1109, Dual ARM Cortex-A7, NPU 1.2T | |
| Operating System | Embedded LINUX | |
| RAM | DDR3 1GB | |
| ROM | EMMC 16GB | |
| Screen | ||
| Dimensions | 10.1 inch IPS HD LCD screen | |
| Resolution | 800*1280 | |
| Camera | ||
| Type | 2MP camera | |
| Sensor | 1/2.9" GC2053 | |
| Resolution | NIR 1280*720@25fps | |
| Lens | 4.5mm | |
| Camera | ||
| Type | Daily camera | |
| Sensor | 1/2.9" GC2093 | |
| Resolution | Color 1920*1080@25fps | |
| Lens | 4.5mm | |
| Face recognition | ||
| Detection Function | Face Dection, Face Comparison, Mask Detection, Living Body Detection, Face Comparison(With Mask) | |
| Face Recognition Distance | 0.5-2m | |
| Face Database Capacity | Max support 30,000 faces | |
| Face Posture | Vertical 61°, horizontal 36° | |
| Occlusion | Ordinary glasses and short fringe have no effect on recognition. | |
| Expression | Under normal circumstances, slight expressions do not affect recognition. | |
| Response Speed | About 200ms | |
| Face Exposure | Support | |
| Local Storage | Support storage of 50,000 records | |
| Recognition Area | Full screen recognition | |
| Upload Method | TCP, HTTP, MQTT | |
| Network Functions | ||
| Network Protocol | IPv4, TCP/IP, HTTP, MQTT, RTSP, SMTP, NTP | |
| Interface Protocol | Private protocol | |
| Security Mode | Authorized password | |
| Event Linkage | Voice broadcast, Abnormal event upload to the platform, Alarm Output | |
| System Upgrade | Support remote upgrade | |
| Accessories | ||
| Supplementary Light | IR light, LED white light | |
| Identification Module | / | |
| Audio Out | Built in Speaker support voice broadcast after successful recognition | |
| Wi-Fi | / | |
| Bluetooth | / | |
| Card Reader | Bulit in IC card reader, Support Mifare1 IC card | |
| 4G(Optinal) | / | |
| Alarm Indicator Light | Abnormal red light, Normal green light | |
| Interface | ||
| Network Interface | RJ45 10M/100M Network Adaptation | |
| Alarm Input | / | |
| Alarm Output | Support 1 channel | |
| Relay Output | Support | |
| RS485 | Support | |
| Wiegand Interface | Support Wiegand 26, 34 protocols | |
| USB | 1*USB 2.0 | |
| TF Card Slot | / | |
| HDMI | / | |
| Reset Key | Support | |
| Anti-disassembly Switch | / | |
| General | ||
| Housing | Aluminum alloy, Ultra-white tempered glass panel | |
| Operating Temperature | -10 ° C ~ 50 ° C | |
| Working Humidity | 10% -90% Non-condensing | |
| Storage Temperature | -20 ° C ~ 50 ° C | |
| Storage Humidity | 5% -95% Non-condensing | |
| Protection Level | / | |
| Power Supply | DC12V, 2A | |
| Power Dissipation (maximum) | 18 W | |

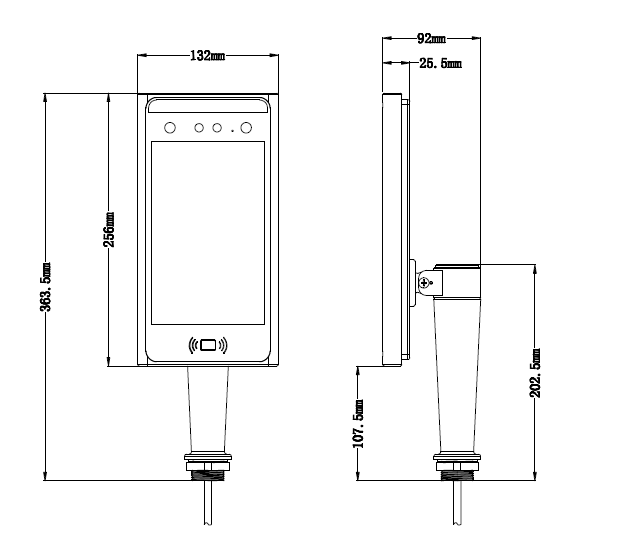

| Dimensions (mm) | Column Bracket Model:363.5(L)*132(W)*92(H)mm, Wall Bracket Model:258.5x(L)*132(W)*31(H)mm | |
| Bracket Size (mm) | Column Bracket:202.5mm(Bracket fixing hole size D=35mm) | |
| Installation Method | Gate machine Installation/Column Installation/Wall Installation | |
