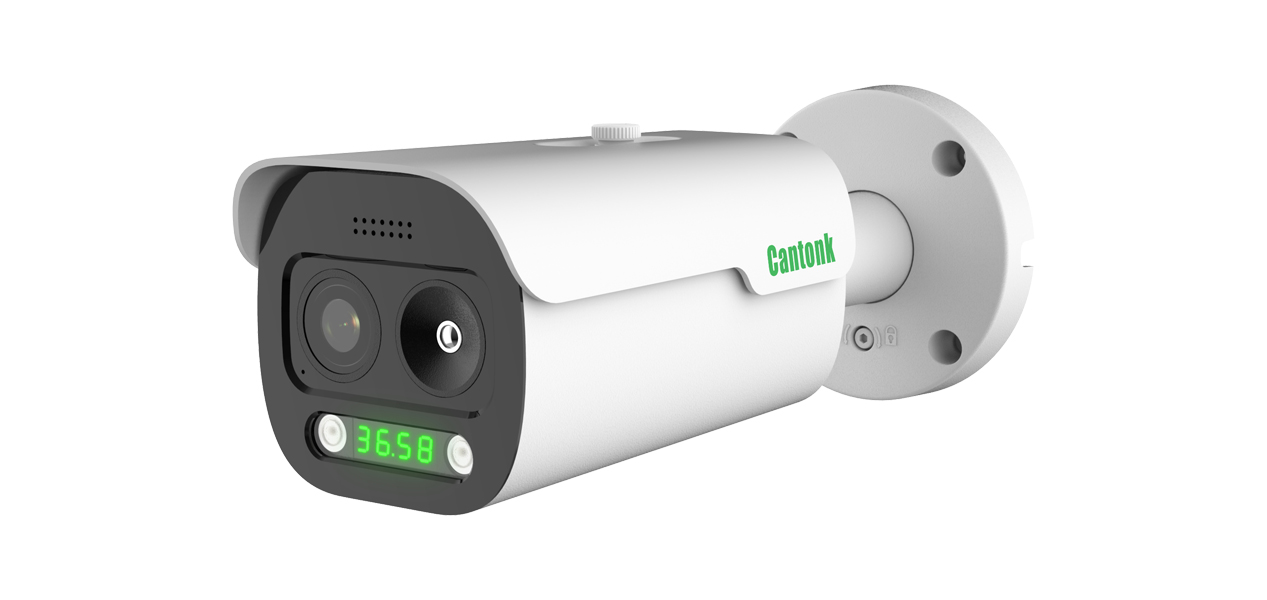

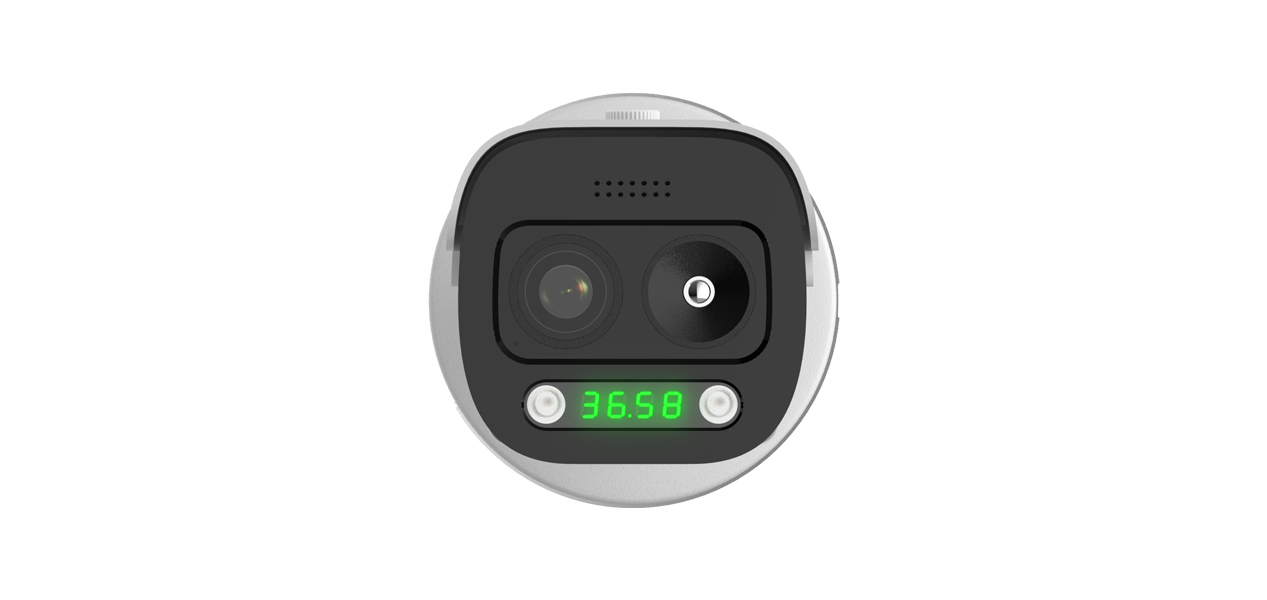

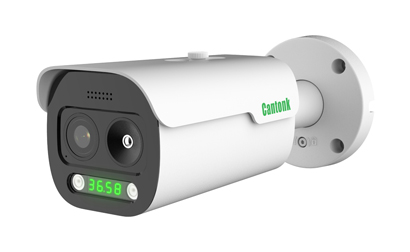

S5006T
  • Specification

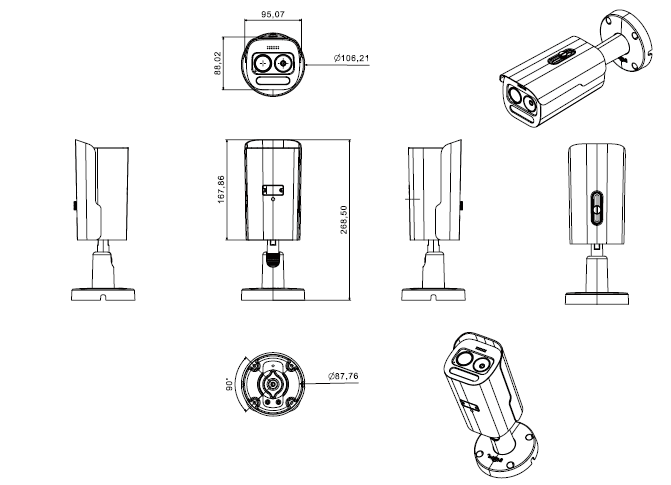

  • Drawing
  • Download
  • Feedback

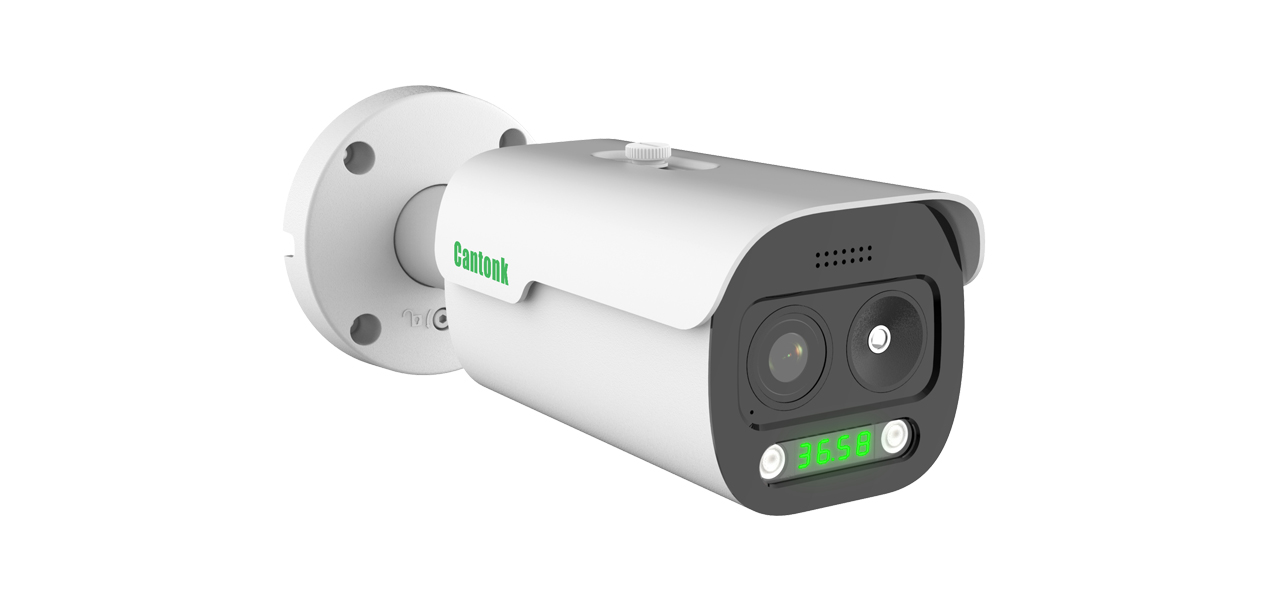

Model NO.S5006T
Camera
Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor
Resolution4MP
Effective Pixels2616 (H) x 1964 (V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonSupport
Lens
Focus LengthBoard Lens 3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels4MP
Night Vision
Infrared LEDNot support
Infrared Distance/
IR Status/
IR Power On/
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
P2PSupport ONVIF 2.4(Profile S/T/G)
POEYES, Support QR Code
Main Stream 1Internal, Support IEEE 802.3af
Main Stream 2 0.3S (Within the Lan)
Main Stream 3Optical: 2592*1944@20fp
2560*1920@20fp
Sub Stream 1Optical: 2560*1440@30fp
Sub Stream 2Optical: 1920*1080@30fps
1280*720@30fps
Sub Stream 3Optical: 352*288@30fps
Tri Stream/
Web Browser/
Smart PhoneThermal: 256*192@≤25fps
IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
Smart PhoneiPhone, iPad, Android, Android Pad
Thermal
Image SensorVox Uncooled Focal Plane Arrays
Resolution256x192
Pixel Interval12μm
NETDLess than 60 mK (@25°C.F#=1.1)
ApertureF1.1
Focal Length3.2mm
Field of View56° x 42° (H x V)
Smart Function
Bi-spectrum Image
Fusion
Support  display the thermal image and optical image simultaneously
Face CaptureBuilt-in deep learning Al algorithm, Face snaping support 30 faces detection simultaneous
and measure temperature 6 faces, Face datebase capacity: Max support 30,000 faces
Temperature
measurement
Support global and local temperature
Temperature Range1-4m
Temperature Accuracy35°C~42°C
Alarm Indicator LightHighly accurate temperature measurement within ±0.5 °C, with black body ±0.3 °C
Sound AlarmReal-time display of temperature measurement results on the digital tube LED display
Local Record StorageSuport light flash when detect abnormal temperature
DisplayBuilt in speaker support voice broadcast when detect abnormal temperature
Local OperationSupport local configuration with mouse
Sound AlarmBuilt in speaker support voice broadcast when detect abnormal temperature
Camera Features
Day/NightColor
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR ,
White Balance, FLK(Flicker Control), Video Tampering
Corridor Pattern/
Defog  ModeSupport
ROISupport
BLCSupport
WDRHDR:120dB
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR/CMS/Web
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French,
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech,Vietnamese
Interface
Audio 1 CH bulit in Mic
Alarm1 Channel Input/Output
SD Card SlotSupport Max 512GB Micro SD Card
RS485Support
General
Housing/
IR Cut FilterYes
Operation Temperature(Temperature measuring) 10 ° C ~ 35 ° C(Enable temperature measurement)
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power Source1000mA/12V
Dimension95.1x88.x268.5mm(WxHxD)
Weight1.7Kgs
